Polymer Tubing Drill. 1.3mm Titanium Pin, Replacement for Flanging Tool. ARE-Applied Research brand. 5/PK.
Additional Info:
The 45099‑313‑005 Polymer Tubing Flanging Drills (5‑Pack) are precision replacement components designed for use with the MICROSOLV Flanging Tool, enabling accurate and repeatable cold flanging of polymer (plastic) tubing tips, particularly for larger internal diameter (ID) tubing.

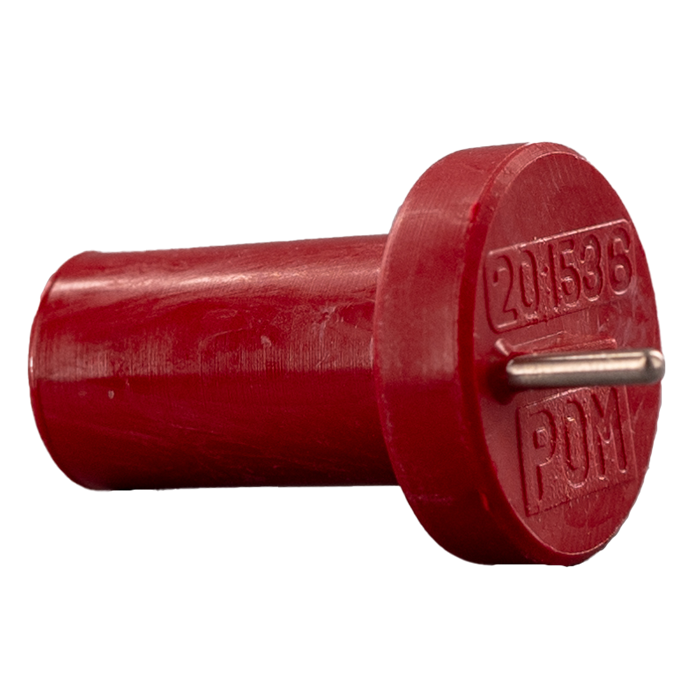

Each drill features a 1.3 mm titanium pin, providing enhanced rigidity and wear resistance compared to polymer pin versions. This ensures consistent internal support during the flaring process, producing a uniform, dimensionally stable tubing flare even under repeated use.
The use of a titanium pin delivers key advantages:
Superior durability and extended service life
Greater mechanical stability for consistent flare geometry
Improved performance in high‑use laboratory environments
When used with the flanging tool, these drills produce mechanically formed (cold‑formed) flares, eliminating heat‑based variability and resulting in:
Stable and repeatable flange formation
Reduced tubing deformation
Reliable, leak‑free sealing surfaces
This configuration is optimized for polymer tubing materials, including:
PTFE
FEP
PFA
ETFE

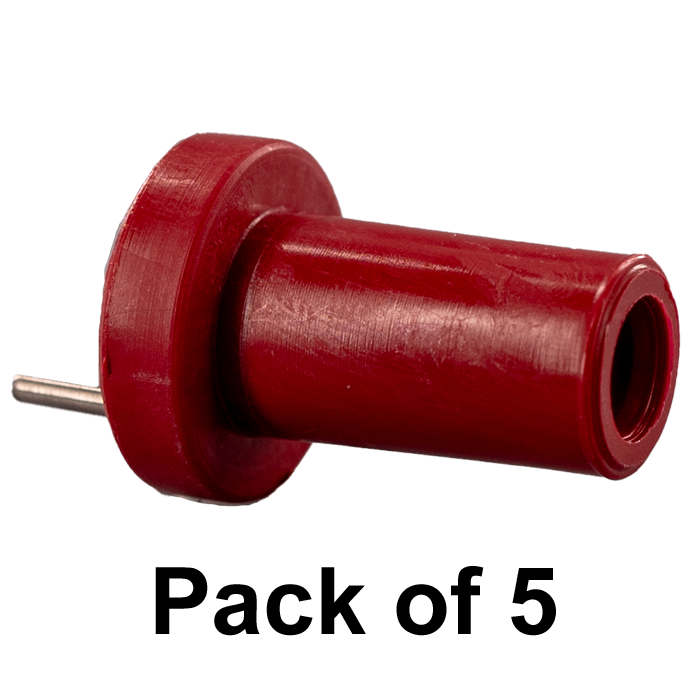

The 5‑pack configuration is ideal for routine maintenance and multi‑user environments, ensuring that replacement drills are readily available for consistent workflow performance.
Why Choose the 1.3 mm Titanium Pin Drill
This drill is typically selected when:
Working with large ID polymer tubing
Greater durability is required over polymer pin options
High‑frequency or multi‑user lab environments are in use
Consistent, repeatable flange geometry is critical
The 1.3 mm titanium pin combines high strength and longevity, making it ideal for larger tubing and demanding applications.
Key Features
Designed for Larger Polymer Tubing
Compatible with PTFE, FEP, PFA, ETFE, and similar materials
Optimized for larger internal diameter tubing
Ensures consistent flaring performance
Titanium Pin Construction
1.3 mm titanium pin
Provides superior rigidity and wear resistance
Maintains consistent performance over extended use
Compatible with Flanging Tool Systems
Designed for MICROSOLV flanging tools
Maintains precision and repeatability
Ideal for replacing worn components
Cold‑Forming Flare Technology
Mechanical flaring (no heat required)
Produces durable, stable tubing flares
Improves connection reliability
Bulk Efficiency
5‑pack configuration for multi‑user environments
Reduces downtime from worn drills
Supports preventative maintenance
Typical Applications
Flanging large ID polymer tubing
Replacement of flanging tool drill components
High‑use chromatography and lab workflows
Preparation of PTFE, FEP, and PFA tubing
Low‑pressure fluidic system assembly
